Product advantage
Pure Sine Wave, Strong loading ability for all kinds of equipment
Optional MPPT/PWM solar charge controller 60A
MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic Function
Optional MPPT/PWM solar charge controller 60A
MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
AC input/DC input/Solar input optional priority
Auto Restart Voltage
With energy-saving mode function, it is more convenient to use
Output short circuit protection function
Multiple parameters can be adjusted according to user needs

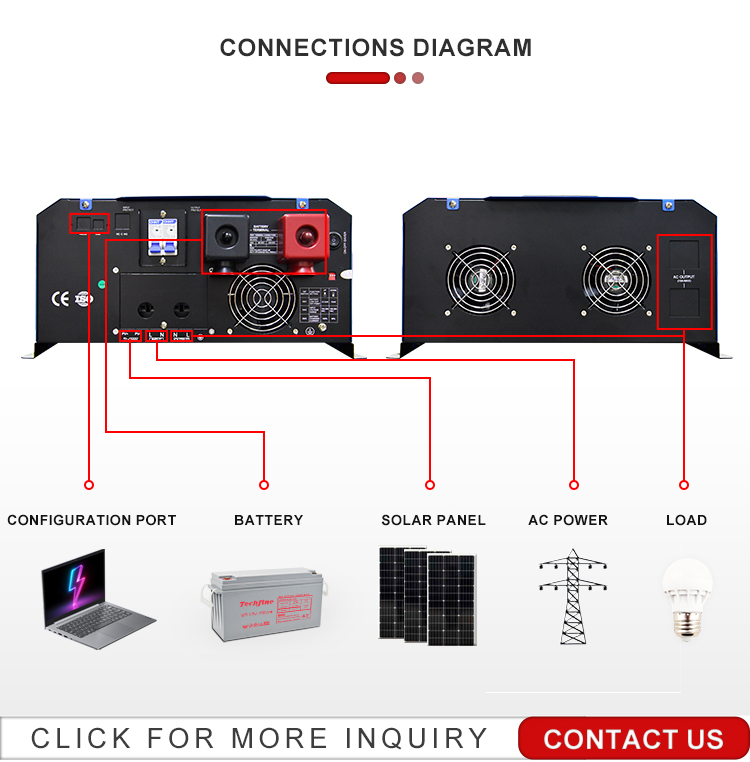

Product Details
Product Parameter
|
Capacity(VA)
|
VC7000VA
|
VC8000VA
|
VC10000VA
|
|
Rated Power
|
5600W
|
6400W
|
8000W
|
|
Voltage(DC)
|
48V
|
||
|
Nominal Voltage
|
220VAC
|
||
|
Voltage Range
|
154-265VAC ;185-264VAC ( selectable)
|
||
|
Frequency
|
50-60HZ Auto sensing
|
||
|
Power Factor
|
0.8
|
||
|
Voltage
|
220VAC
|
||
|
Frequency
|
50/60HZ
|
||
|
Waveform
|
Pure Sine Wave
|
||
|
Transfer Time (AC to DC)
|
<8ms
|
||
|
Transfer Time (DC to AC)
|
<8ms
|
||
|
Output Voltage Regulation
|
土10%
|
||
|
Bypass Mode
|
Yes
|
||
|
Saver Mode
|
Yes
|
||
|
Efficiency
|
>98%
|
||
|
Input Protection
|
Circuit Breaker
|
||
|
Output Protection
|
Circuit Breaker
|
||
|
Battery Type
|
VRLA / GEL /GEL DEEP CYCLE
|
||
|
Charging Current
|
40A
|
45A
|
55A
|
|
Low Level disconnect (Selectable)
|
40V -42V
|
||
|
PWM controller Voltage range
|
60VDC-150VDC
|
||
|
PWM Maximum PV display open circuit voltage
|
75V
|
||
|
Maximum PV array power
|
3400W
|
||
|
MPPT control voltage range
|
60V-150V
|
||
|
MPPT Maximum PV display open circuit voltage
|
150VDC
|
||
|
Maximum solar charge current
|
60A
|
||
|
LCD indicator status
|
AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc.
|
||
|
LED indicator status
|
AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red
|
||
|
LOW battery alarm
|
Audible alarm-5 seconds beeping
|
||
|
Overload alarm
|
Audible alarm- continuous beeping
|
||
|
Fault
|
Audible alarm- continuous beeping
|
||
|
Temperature
|
0-60℃
|
||
|
Humidity
|
—10℃~90℃ Non condensing
|
||
|
Accoustic Noise(db)
|
>55dB
|
||
|
Size L*W*H(mm)
|
720mm*335mmm*210mm
|
||
|
Weight (kg)
|
27
|
30
|
33
|
