OVERVIEW
Input Voltage: 48V DC
Output Voltage: 220/230VAC, 220/230V
Output Current: 60A
Output Frequency: 50-60Hz
Output Type: Single
Type: DC/AC Inverters
Inverter Efficiency: >92%
Certificate: CE, ROHS, ETL, cETL
Warranty: 1 year

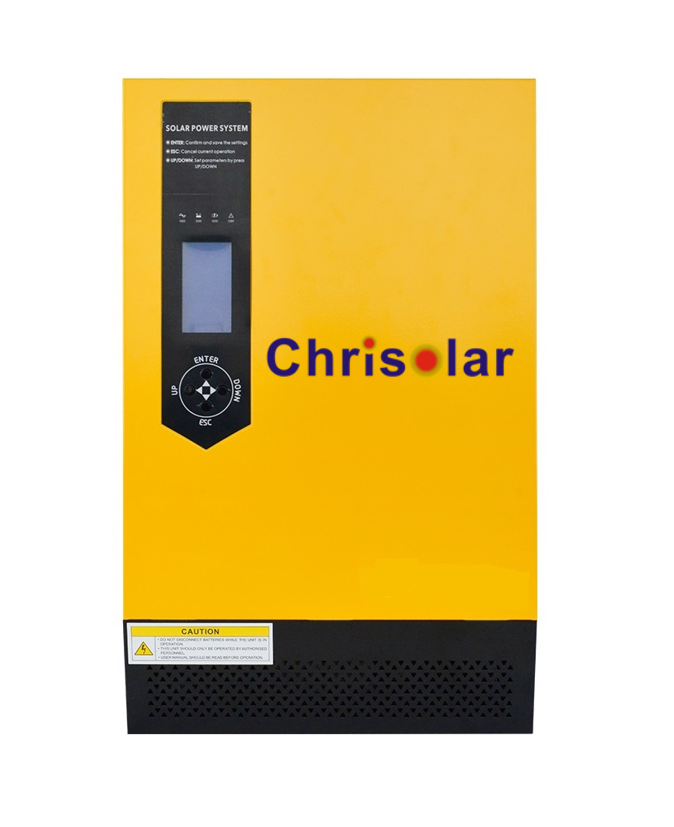

Product Name: All in One Solar Inverter
Rated Power: 5000VA/5KW
Peak power: 10000VA
Controller: MPPT 80A
Maximum PV array open circuit voltage: 145VDC
Waveform: Pure sine wave
Max.Inverter Efficiency: >92%
Battery Type: Lead Acid or Lithium battery
Product Paramenters
|
Model
|
1000VA
|
1500VA
|
2000VA
|
3000VA
|
5000VA
|
|
Input Voltage(DC)
|
12V/24V
|
12V/24V
|
12V/24V
|
24V/48V
|
24V/48V
|
|
Nominal Voltage
|
220VAC(Standard)
|
||||
|
Rated Power
|
800W
|
1200W
|
1600W
|
2400W
|
4000W
|
|
Waveform
|
Pure Sine Wave
|
||||
|
Battery Type
|
VRLA / GEL /GEL DEEP CYCLE/LITHIUM
|
||||
|
Maximum pv array power
|
12V:800W / 24V:1600W/ 48V:3200W
|
||||
|
PV Input Voltage Range (PWM Controller)
|
12V:MPPT 15V-150VDC / PWM 15V-30VDC
|
||||
|
24V:MPPT 30V-150VDC / PWM 30V-60VDC
|
|||||
|
48V:MPPT 60V-150VDC / PWM 60V-105VDC
|
|||||
|
Maximum solar charging current
|
60A
|
||||
|
Maximum AC charging current
|
15A/8A
|
30A/15A
|
40A/20A
|
30A/15A
|
42A/21A
|
|
Transfer Time
|
<10ms(UPS mode)/<20ms (INV mode)
|
||||
|
Load peak ratio
|
(MAX)3:1
|
||||
|
Static power(W)
|
5W
|
11.5W
|
13W
|
15W
|
20W
|
|
Protections
|
Power supply: Input overcurrent protector
|
||||
|
Accoustic Noise(db)
|
<45dB
|
||||
|
Dimension(L*W*H)mm
|
512*320*136
|
||||
|
Weight (kg)
|
11.5
|
12.5
|
15
|
16.8
|
21.5
|
