OVERVIEW
Model Number: ML60, ML100
Type: MPPT
Application: Charger Controller, Solar Working Station, Solar System Controller, off grid
system
Work Time (h): All Day
Max PV Power: 6240W, 10400W
Max PV Voltage: 250V
Warranty: 1year
Name: MPPT Solar Charger Controllers
MPPT efficiency: 99%
Display: LCD/LED display
Rated Current: 60A, 100A
Max PV Input Voltage: 250VDC
OEM: Accepted
Protection Function: Low Voltage Protection, Battery Reverse Connection Protection
WIFI Function: Optional
Battery type: VRLA, GEL, DEEP CYCLE, LITHIUM, FLOOD
PRODUCTS PARAMETERS
| Model | 60 | 100 | |
| System voltage | 96V | ||
| Nominal current | 60A | 100A | |
| Charging mode | MPPT Maximum power point tracking | ||
| Applicable battery type | Sealed lead-acid battery, GEL lead-acid battery, open lead-acid battery (can also customize parameters for other types of battery
charging) |
||
| Charging method | Three stages: constant current, constant voltage, floating charge | ||
| PV input maximum open-circuit voltage (VOC) | 250V | ||
| Starting time | ≤ 10 | ||
| Dynamic response recovery time | ≤ 500 | ||
| Static power | ≤ 4 | ≤ 8 | |
| MPPT Tracking efficiency | ≥ 99.5% | ||
| Overall efficiency | ≥ 98% | ||
| The controller system identifies the operating voltage range | 12V | 72～128 | |
| 24V | |||
| 36V | |||
| 48V | |||
| Operating voltage range of maximum Power-Point | 12V | 128～250V | |
| 24V | |||
| 36V | |||
| 48V | |||
| Solar Panel Rated Input power | 96V | 6240W | 10400W |
| Heat-dissipating method | Wind cold | ||

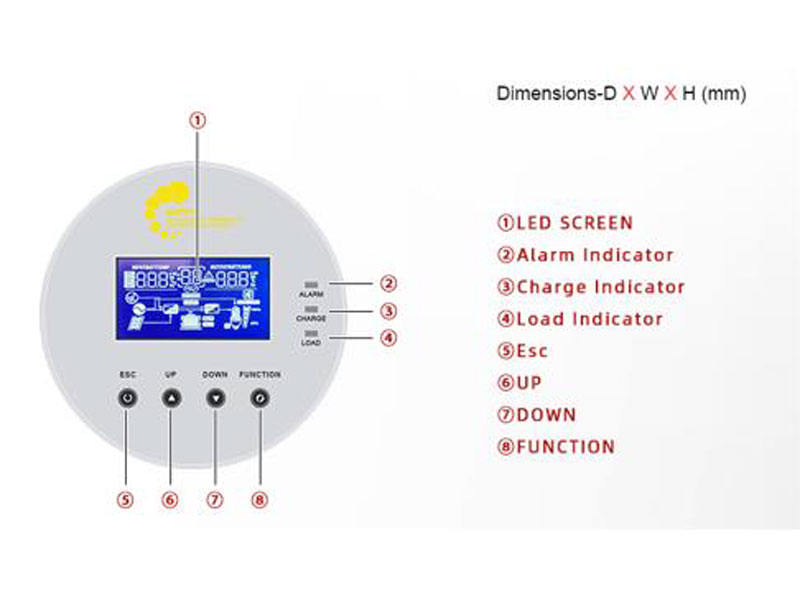

| Display | HD LCD backlight display | |
| Protections | Input and output over & low-voltage protection, input, and output anti-reverse protection, over-temperature protection, load
over-current protection |
|
| Temperature compensation coefficient | 一3mV/℃/2V | |
| Working temperature | 一20℃～+50℃ | |
| Storage temperature | 一40℃～+70℃ | |
| Acoustic Noise(DB) | ≤50dB | |
| Humidity | 0～90%RH | |
| Working altitude | 0～3000M | |
| Communication Type | RS485 | |
| Suggested wire specification | 4AWG/25mm² | 2AWG/35mm² |
| Dimension, L×W×H | 219*260*110 | 275*348*109 |
| Net Weight (KG) | 2.6KG | 4.5KG |
