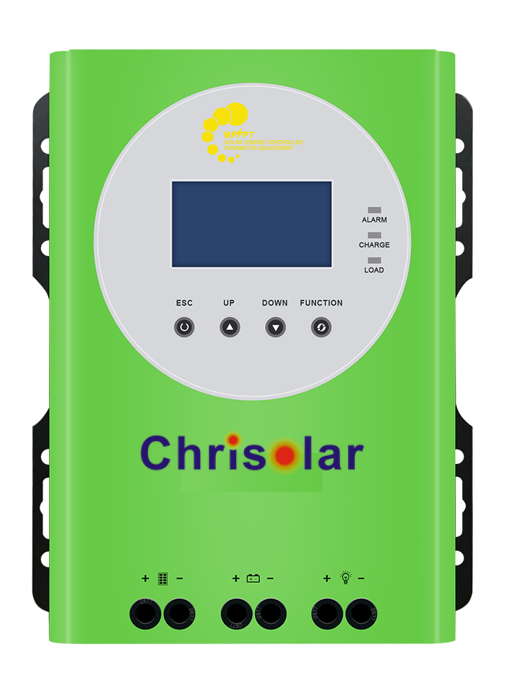

CHRISOLAR 80A 12V - 48V MPPT SOLAR CHARGE CONTROLLER

In stock

  •  Automatic equipment production: standardized quality, high-efficiency production.
  •  Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
  •  Production: High voltage protection, overload protection, Battery reverse connected protection, Low voltage
  • protection, overheating protection, Output short-circuit protection.
  •  The maximum utilization rate of solar energy can reach 99%, with a super-fast charging algorithm, efficiency increased by 30%.
Share on facebook
Share on twitter
Share on email
Share on telegram
Share on whatsapp
Share on pinterest
Share on facebook

7 Days Return

You have 7 Days to return goods bought If the goods have problems in Nigeria.

Fast Delivery

We ship Fast across all cities in Nigeria.

Secure Payment

100% secure payment

24/7 Support

Dedicated support

How to Buy?

We ship across all cities in Nigeria.
Also visit our F.A.Q

OVERVIEW
Model Number: ML040415, ML060415, ML080415.
Type: MPPT
Application: Charger Controller, Voltage Controller, Solar System Controller
Work Time (h): Always
Max PV Voltage: 150V
Warranty: 1 YEAR
MPPT efficiency: 98%
Protection: Short circuit
Color: Green
Display: LCD Screen
Feature: High-Efficiency Charging Method
Voltage: 12v/24v/48v
Nominal current: 40A, 60A, 80A
Control Mode: Intelligent Control
Max PV Power: 2160 Watts, 3200 Watts, 4160 Watts.

PRODUCTS PARAMETERS

Model  40A  60A  80A
System voltage  12V/24V/36V/48V(Adaptive)
Nominal

current

40A  60A  80A
Charging mode  MPPT Maximum power point tracking
Applicable

battery type

Lead-acid battery; Gel battery; Flooded battery; Deep cycle battery
Charging

method

Four stages: constant current charge, constant voltage charge, floating charge,  equalizing charge
PV input

maximum

open circuit

voltage (VOC)

DC150V
System

identified  voltage

12V  8~16V
24V  17~30V
36V  30~42V
48V  42~64V
PV input  voltage  12V  17~150V
24V  30~150V
36V  41~150V
48V  53~150V
Solar

panel

rated

input

power

12V  540W  800W  1040W
24V  1080W  1600W  2160W
36V  1620W  2400W  3240W
48V  2160W  3200W  4320W
